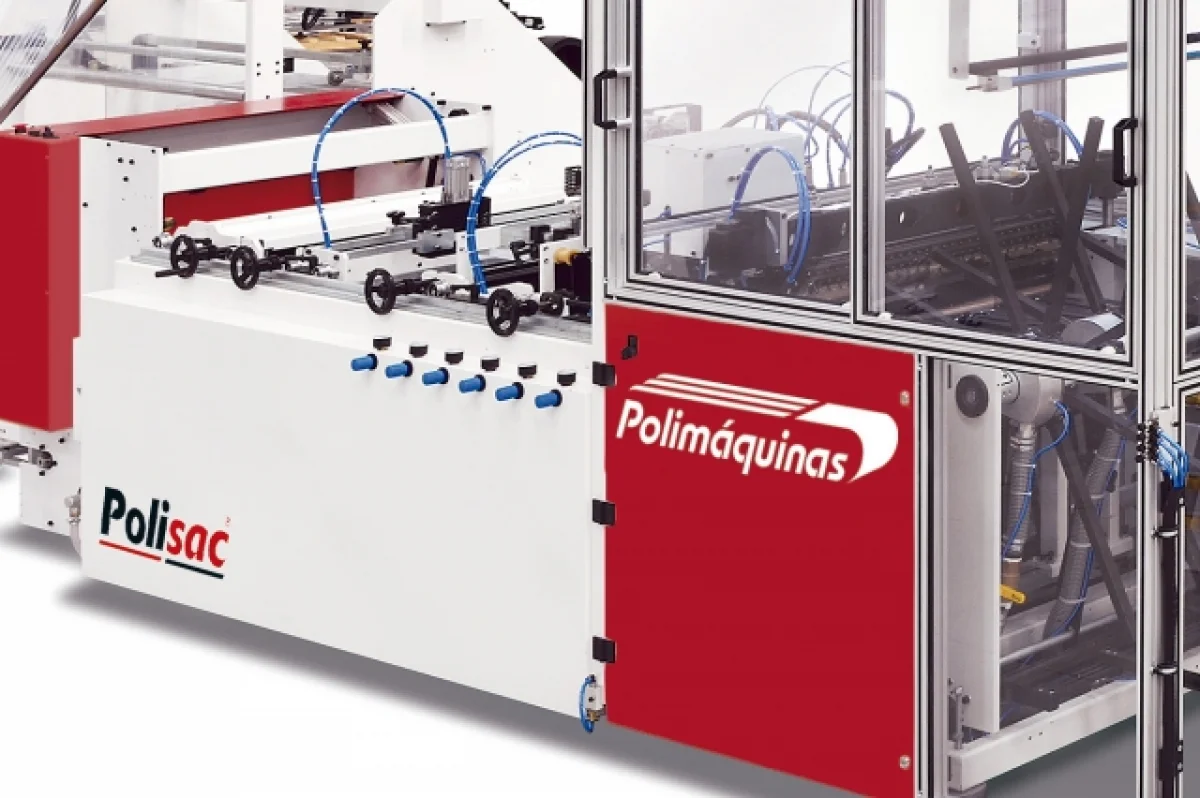

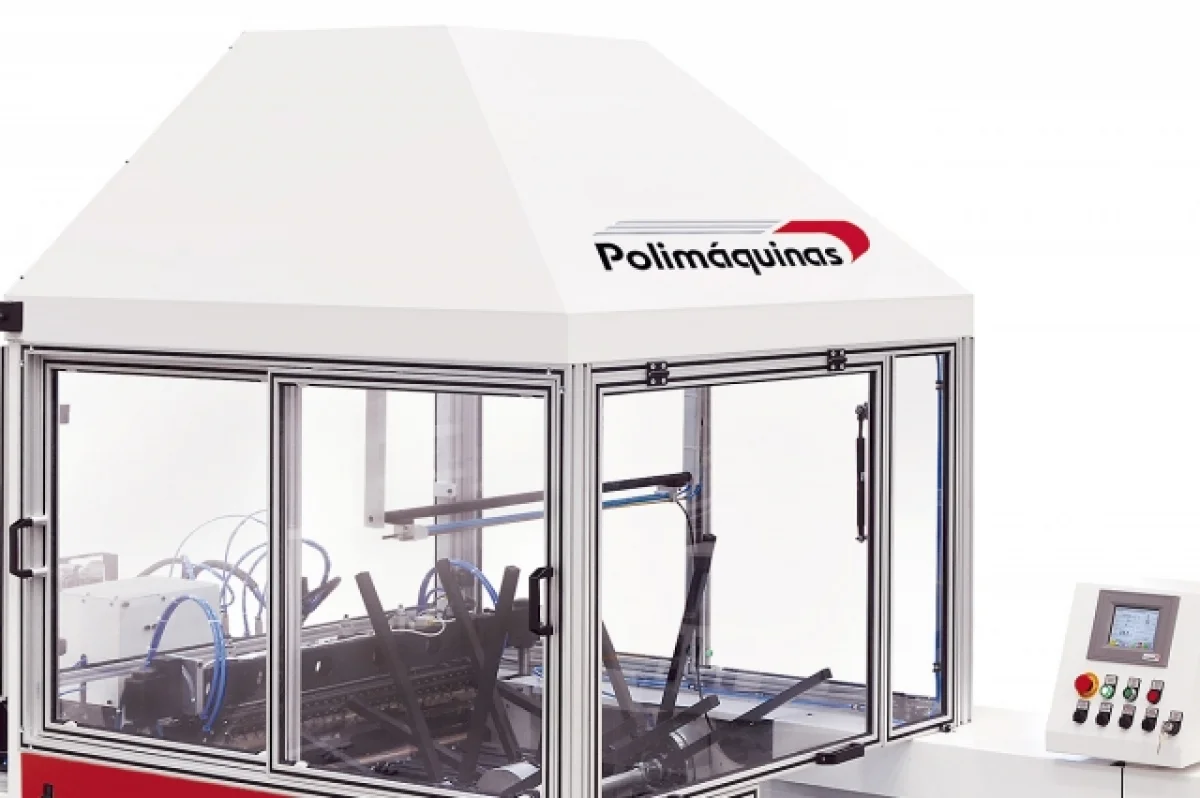

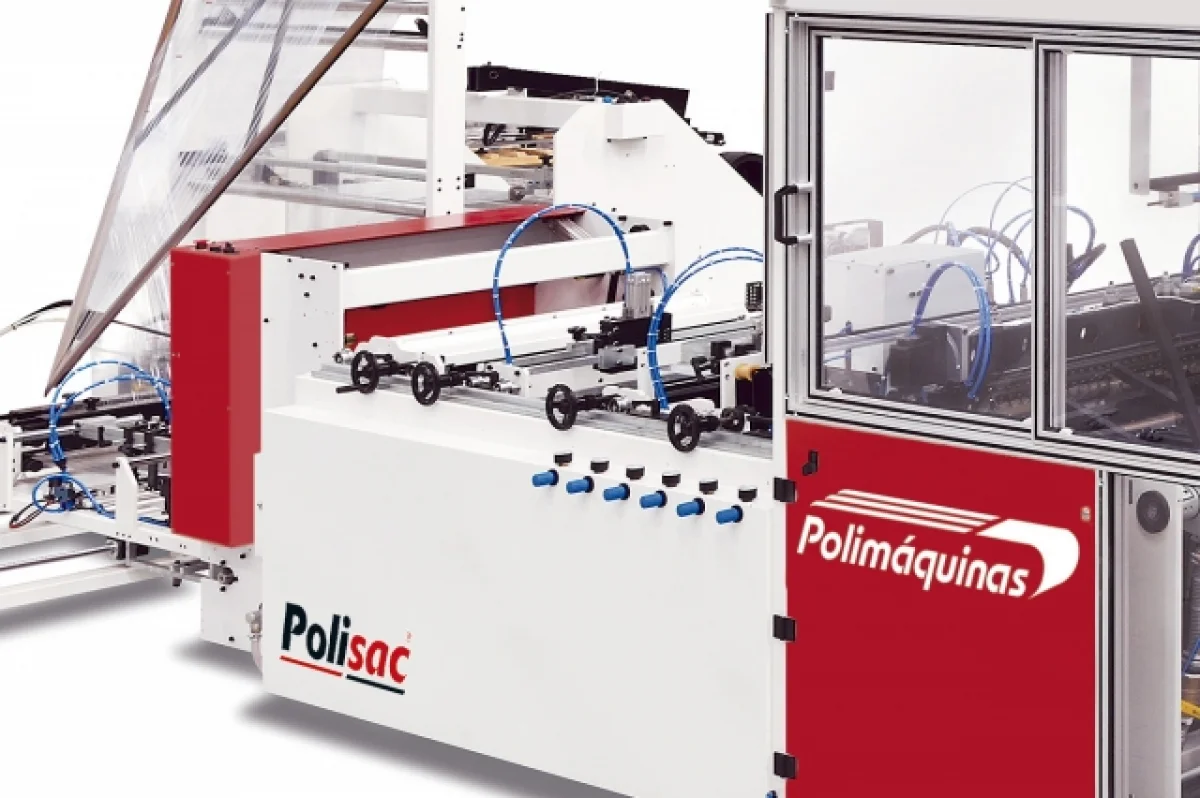

Polisac CSW Wicketer is a welding and cutting machine for manufacturing of loaf bread, female absorbent and diaper packages
A favorite of our customers and for this reason we are introducing you.
Check the technical information to understand the benefits it can bring to your business.
Stard Components
- Unwinder with tension control and triangle folder with edge align;
- Pneumatic expansion shaft coil holder
- Automatic film position control and flap size
- Gussetter (disc)
- Balance compensator with traction roller and trash arm
- Two sets for film traction, driven by servomotors
- Lateral welding head (PE) driven by servomotor;
- Sealing roll;
- Set of punch for high speed electronically aligned with stacking needles
- Servomotor driven stacking needles

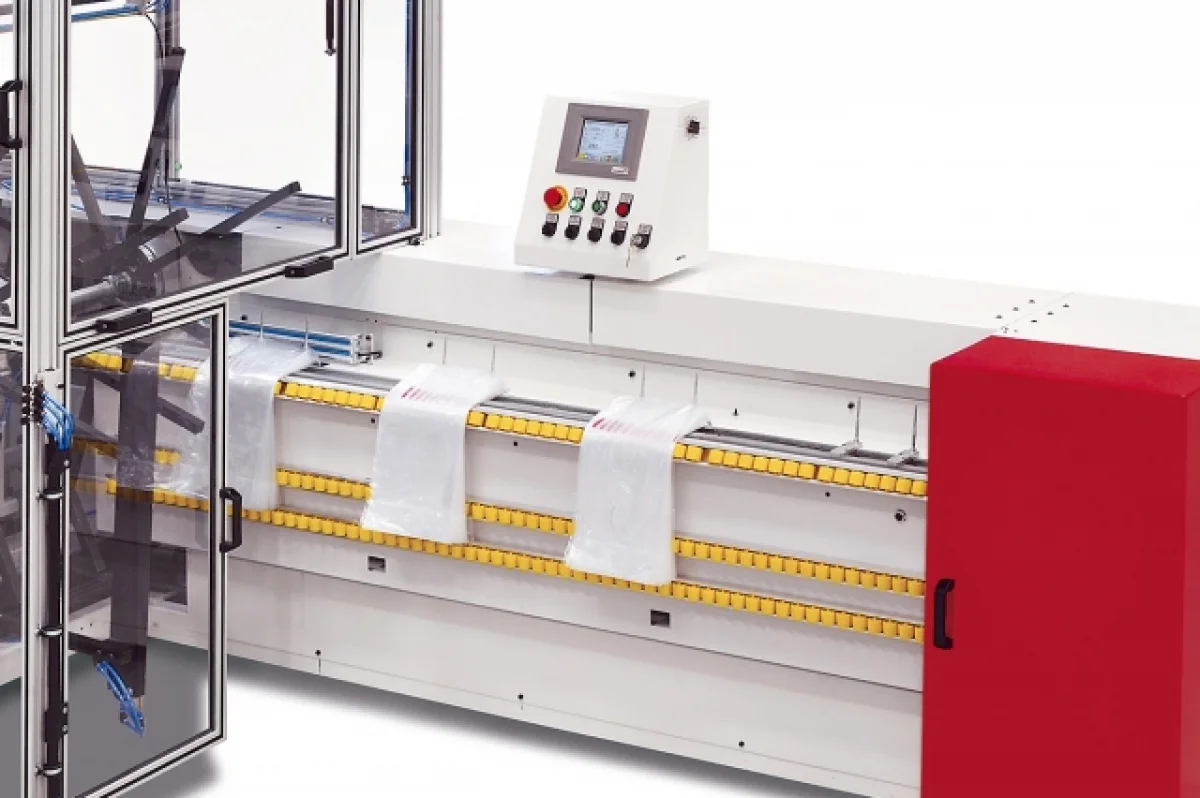

- Modular output conveyor with independent speed control
- Three sets with eight gripper arms with low vacuum consumption
Types of packaging
Technical Specifications
|
Charactertistics |
700/CSW |
||
|
Velocity until |
250cpm ou 65m/min. |
300cpm ou 75m/min. |
|
|
Coil diameter and width (max.) |
mm |
1000/1400 |
1000/1400 |
|
Film thickness - coil / foil (min./max. total) (2) |
mm |
0,015 / 0,120 |
0,015 / 0,110 |
|
Total set length |
mm |
9500 |
10000/11000 |
|
Width x height of the set (max.) |
mm |
3600/2700 |
3600/2700 |
|
Air consumption 6Kg/cm2 (aprox.) |
l/min |
900 |
1200 |
|
Cooling water temperature (min./max.) (3) |
C |
20 / 25 |
20 / 25 |
|
Installed electrical power |
kVA |
25 |
25 |
